Landoll Trailers
318 Traveling Axle Trailer
Features
- Capacity
- 50 ton
- Axles
- 2
- Deck height
- 38 in
Overview

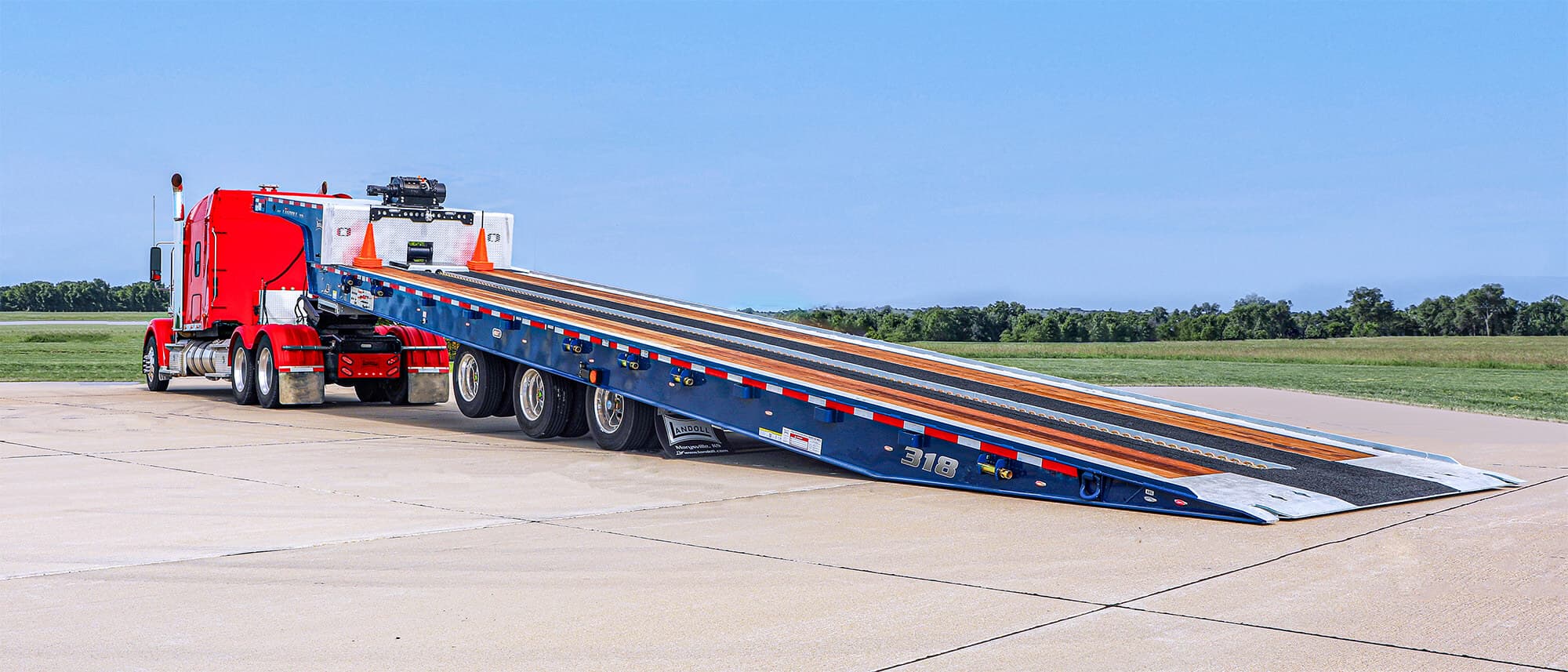

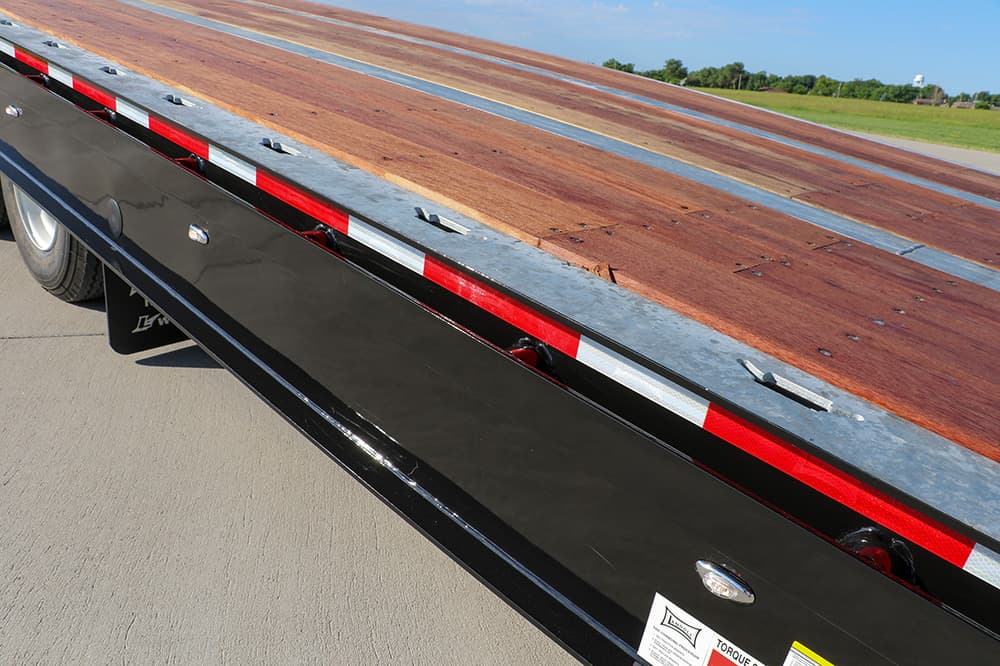

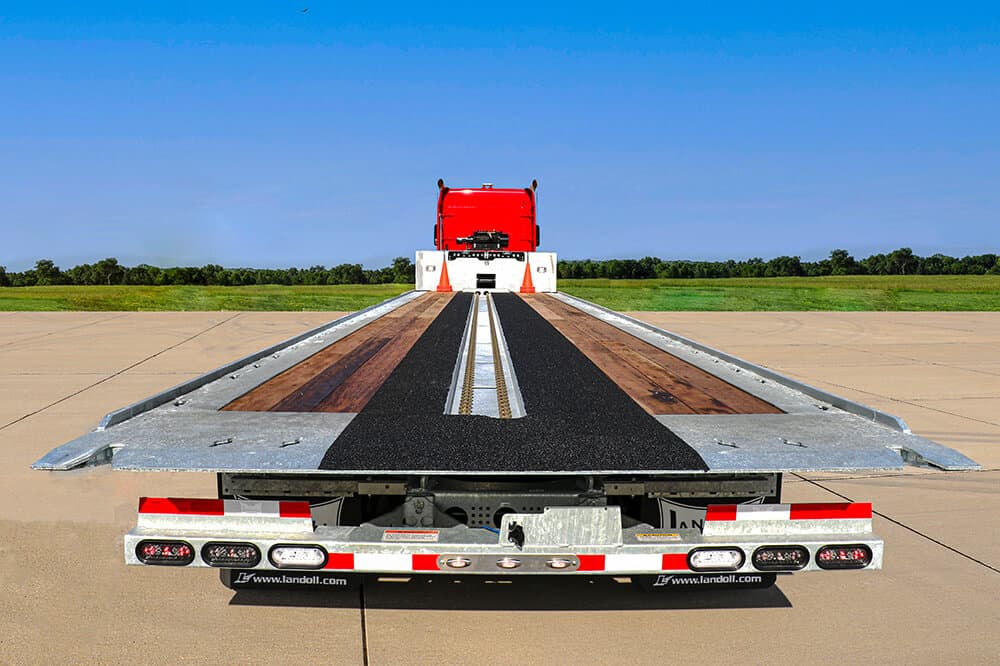

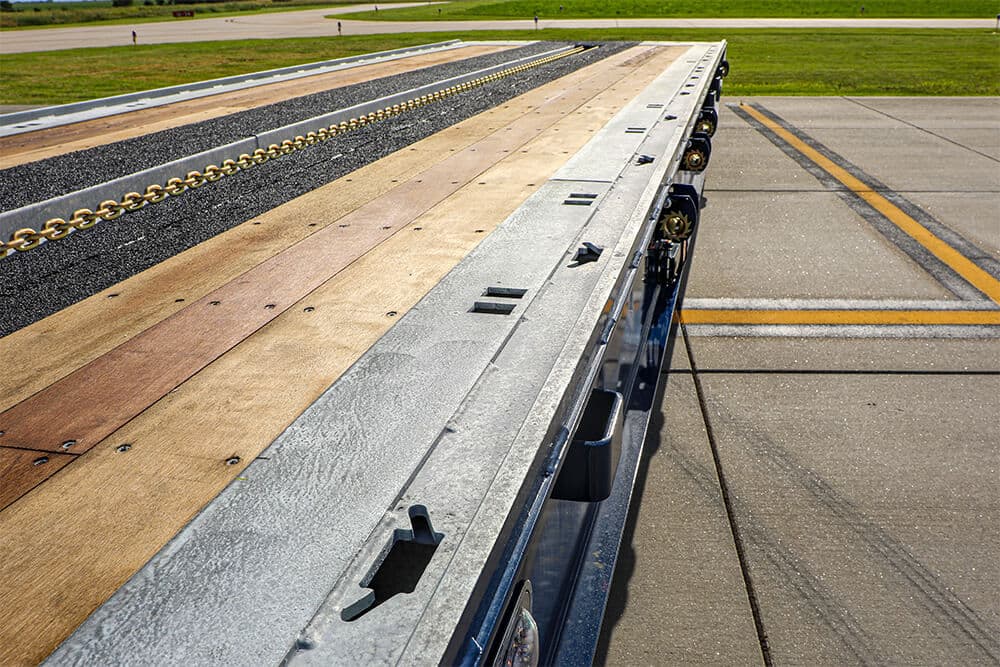

The 318 50-ton capacity trailer features a one-piece, 4-beam frame designed with a low-load angle to haul tough loads. Landoll’s full-tilt trailer gives the operator total control of the trailer and heavy loads. The 318 features a dependable rigid frame that lifts up from the fifth wheel and three axles to provide the additional group rating needed. In-house designed and fabricated steel beams, similar to the 317, incorporated with high tensile strength Jr. I-Beam cross members provide additional strength. The undercarriage roller bearings lower the deck into patented reinforced pockets, lowering the deck height and preventing frame twist. The 318 is a highly durable solution when heavy loads are needing moved. The 318 comes equipped with standard centralized grease, Grote annealed marker lights, Grote “Xtreme” wire harnesses and durable powder coat paint. Popular options include Container Chain Drive for heavy containers, multiple Winch combinations and Dock Level Hydraulics to level the trailer to dock height. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Toter Hitch (Flipbook) 1/8″ Steel Tread Plate Over Wood Deck Straps Beside Outer Beam (1-1/4″ x 9″) 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart
About traveling axle trailers
On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
Not sure this is the right type for your load? Tell us what you are hauling and we will recommend a capacity and deck.
