Landoll Trailers
317 Traveling Axle Trailer
Features
- Capacity
- 35 ton
- Axles
- 2
- Deck height
- 38 in
Overview

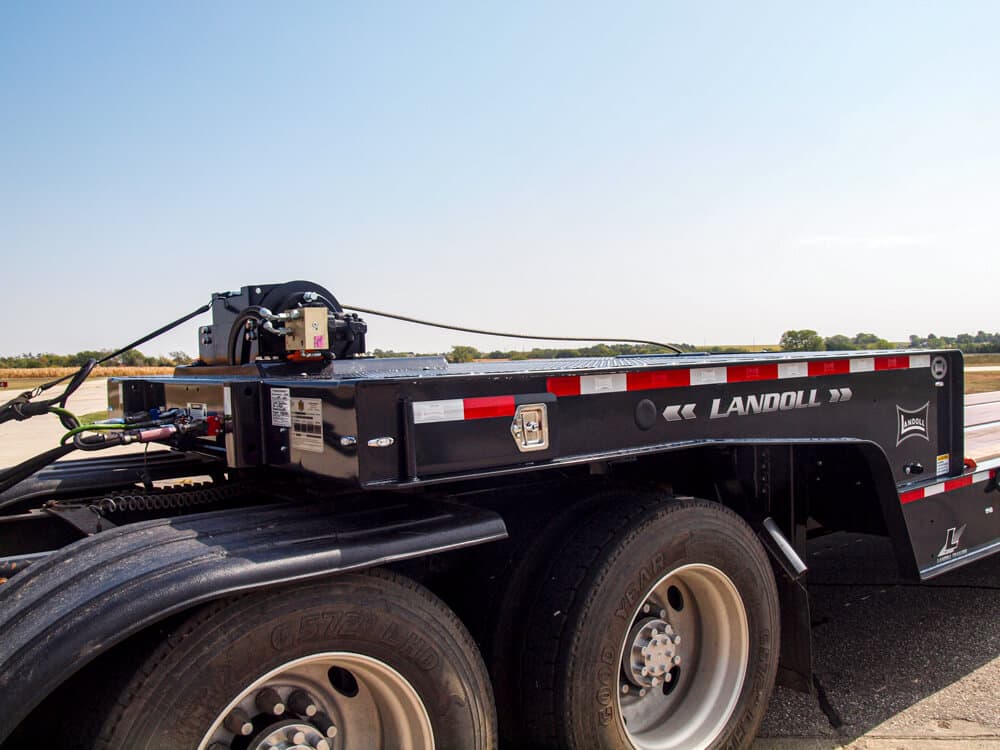

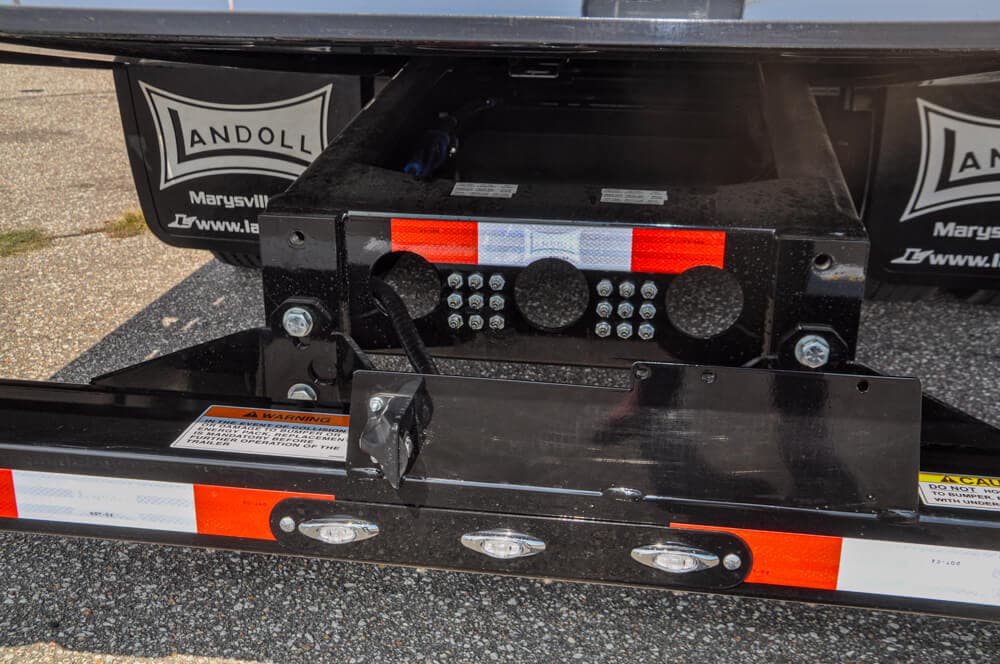

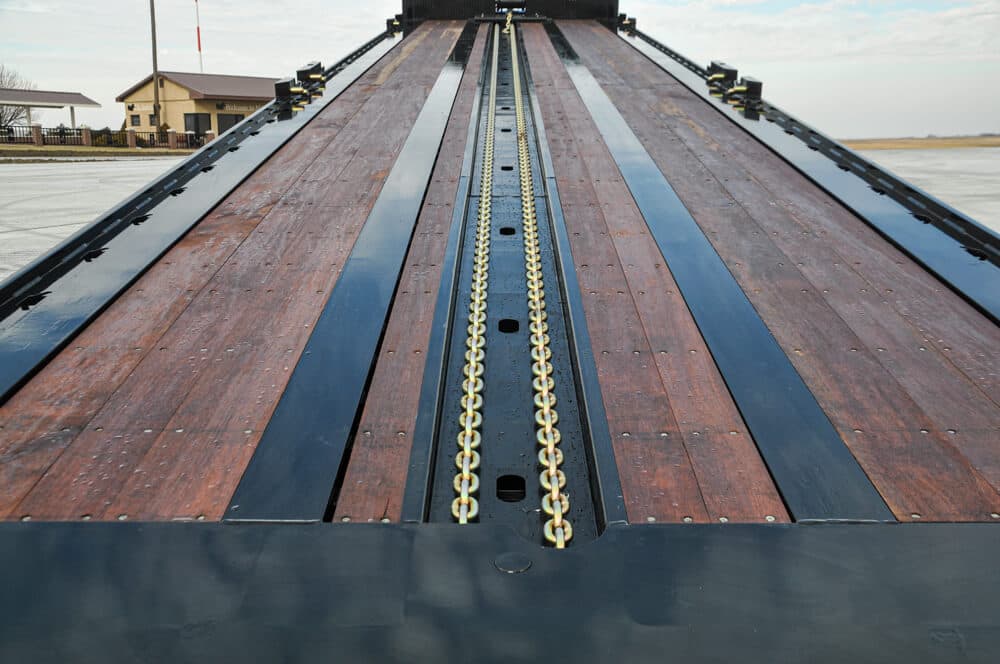

The 317 35-ton capacity trailer features a one-piece, 4-beam frame designed with a low-load angle and a 29” full width, rigid flat approach plate. Landoll’s full-tilt trailer gives the operator full control of the trailer and heavy loads. The 317 features a rigid frame that lifts up from the fifth wheel. The 317 is nicknamed the OLD WORKHORSE because of its decades of dependable performance and durability. In-house designed and fabricated steel beams, incorporated with high tensile strength Jr. I-Beam cross members provide unsurpassed strength while offering substantial weight savings. The undercarriage roller bearings lower the deck into patented reinforced pockets, lowering the deck height and preventing frame twist. Whether the load is a heavy fork lift or a loaded container, the 317 can do it all. The 317 comes equipped with standard centralized grease, Grote annealed marker lights, Grote “Xtreme” wire harnesses and durable powder coat paint. Popular options include Container Chain Drive, Dual Winches and Dock Level Hydraulics to level the trailer to dock height. Photos may show optional features. * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. 1/8″ Steel Tread Plate Over Wood Deck Straps Beside Outer Beam (1-1/4″ x 9″) 255/70R 22.5 Double Coin 255/70R 22.5 Continental 255/70R 22.5 Michelin * Capacity ratings are frame capacities only. Actual load capacities may be restricted by factors such as gross axle weight ratings (GAWR) or state and federal regulations. Specifications subject to change without notice. 800-428-5655 moc.llodnal@selasreliart
About traveling axle trailers
On a traveling axle trailer the axle assembly slides forward hydraulically until the rear of the deck touches the ground, turning the whole deck into a ramp. Equipment loads from the rear without a detachable neck or separate ramps, which makes it fast for one operator. Popular with rental yards and contractors moving mid-size machines and containers, with capacities typically from 25 to 55 tons.
